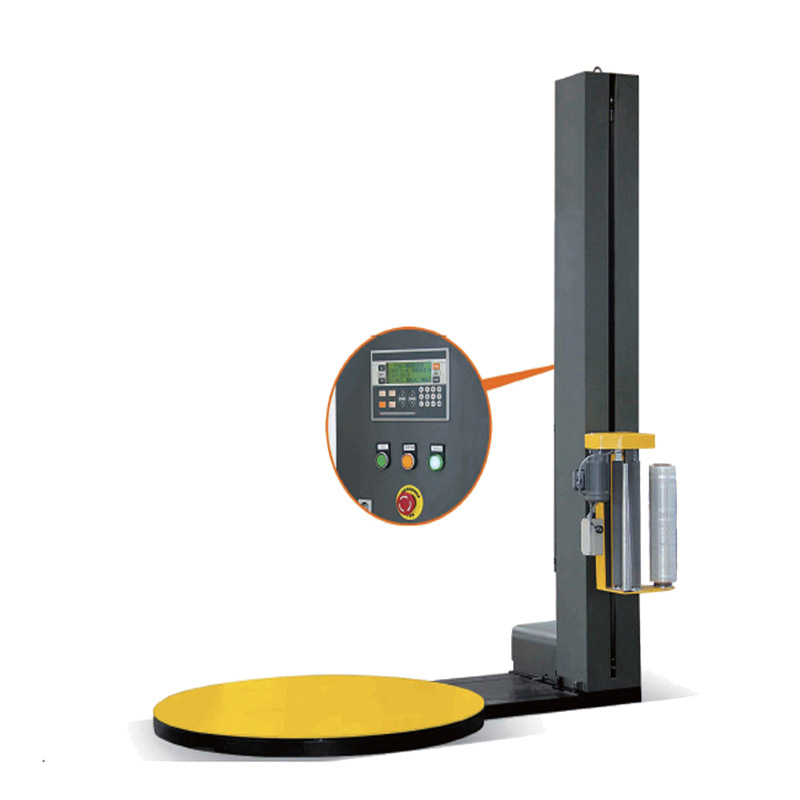

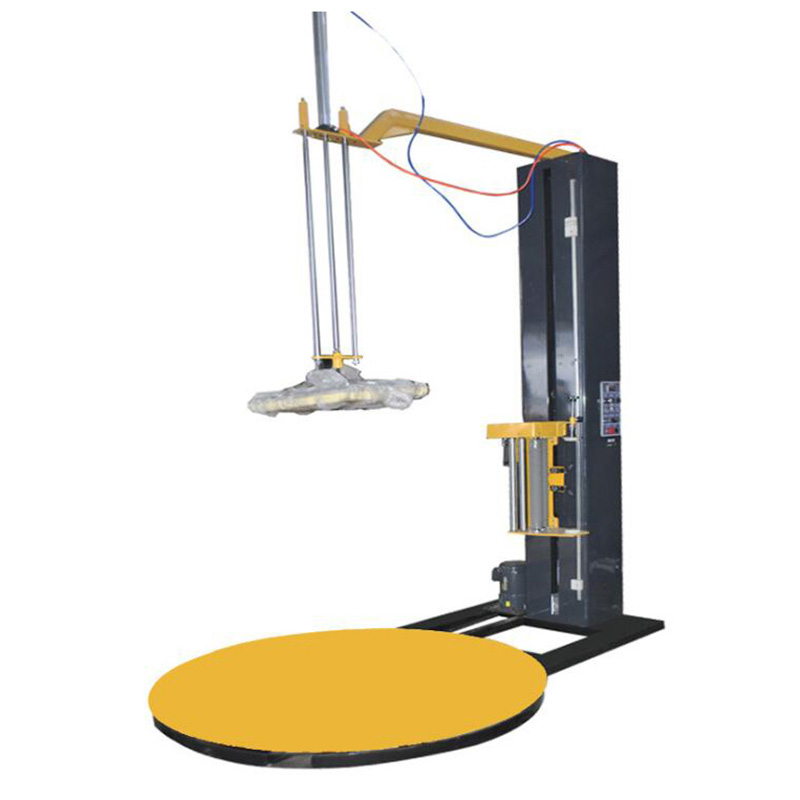

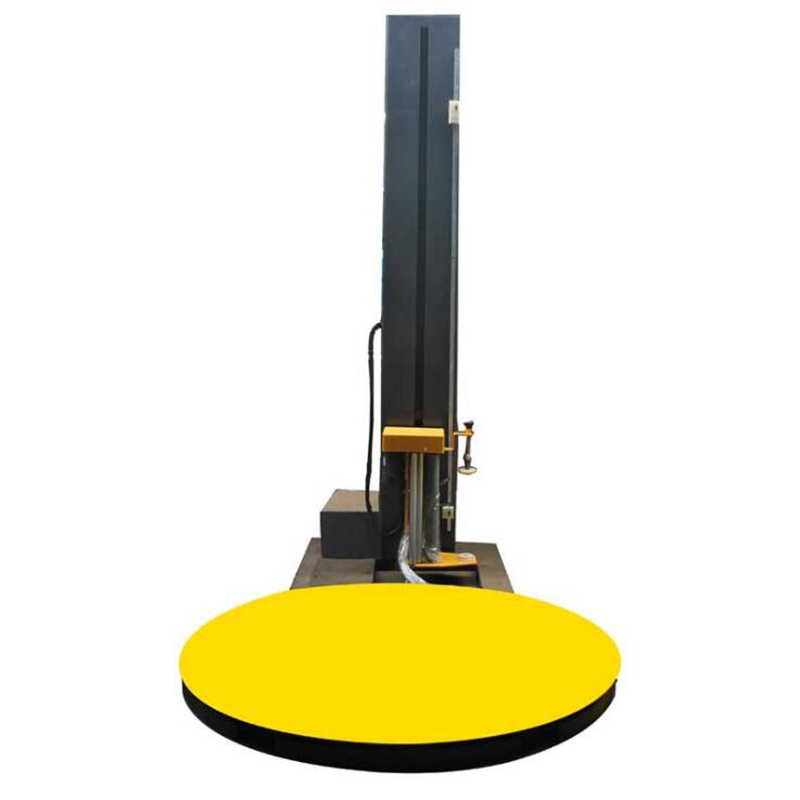

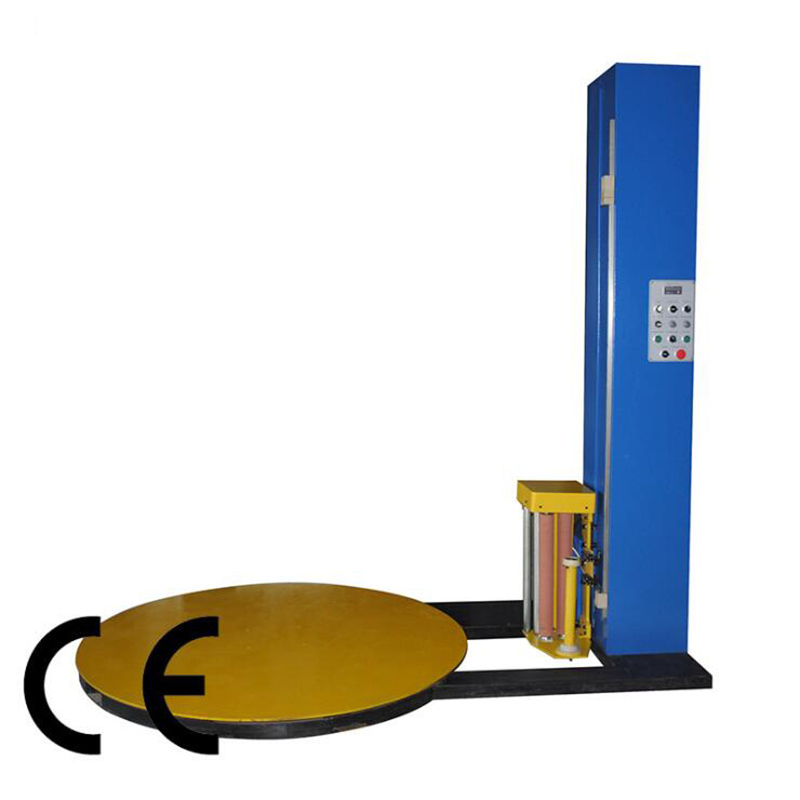

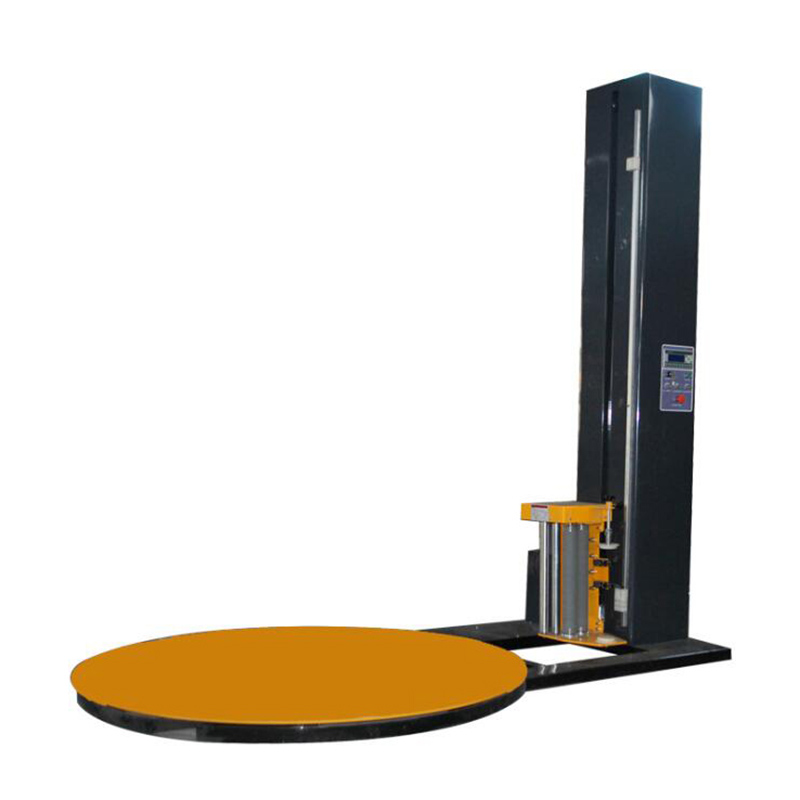

TP1650F-L Pallet Wrapping Machine

TP1650F-L Pallet Wrapping Machine Description

TP1650F-L Automatic Pallet Wrapping Machine Features

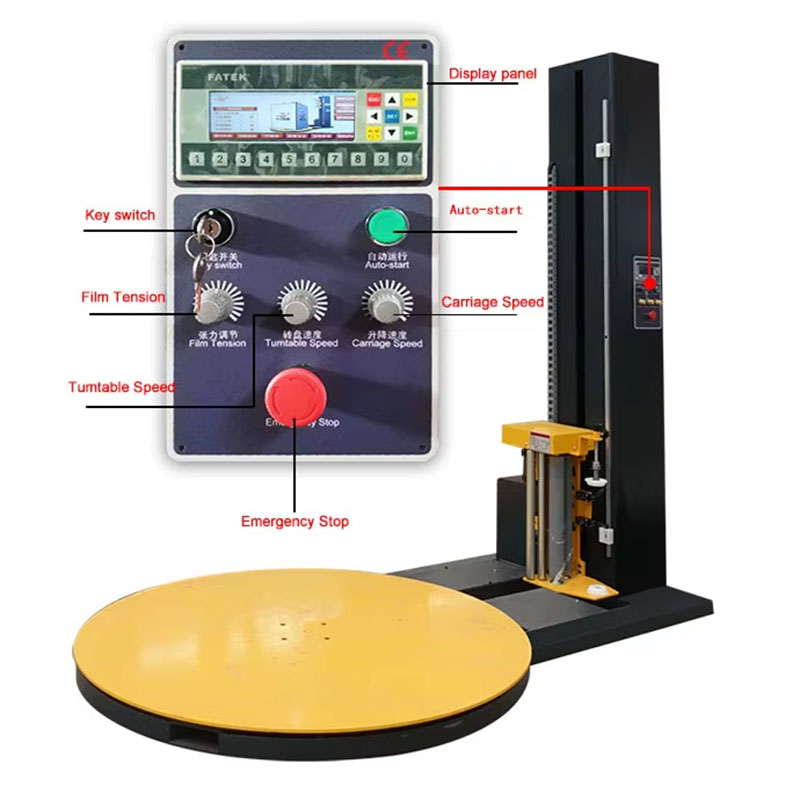

1. PLC control system, easy to operate

2. Big turntable with heavy load capacity

3. 0-12 rpm variable turntable speed by frequency changer, position turntable alignment, soft start

4. Powered pre-stretch system up to 250% to minimum film consumption

5. Heavy duty double-chain carriage lift, calm and safety

6. Film carriage variable speed by frequency changer

Specifications:

Model	TP1650F-L Pallet Wrapping Machine
Wrapping size(L*W)	(500-1200)mm*(500-1200)mm
Packing height	L type:(500-2000)mm
	H type:(500-2400)mm
	Y type:(500-higher than 2400)mm
Packing efficiency	20-40 loads/hour
Turntable speed	0-12rpm

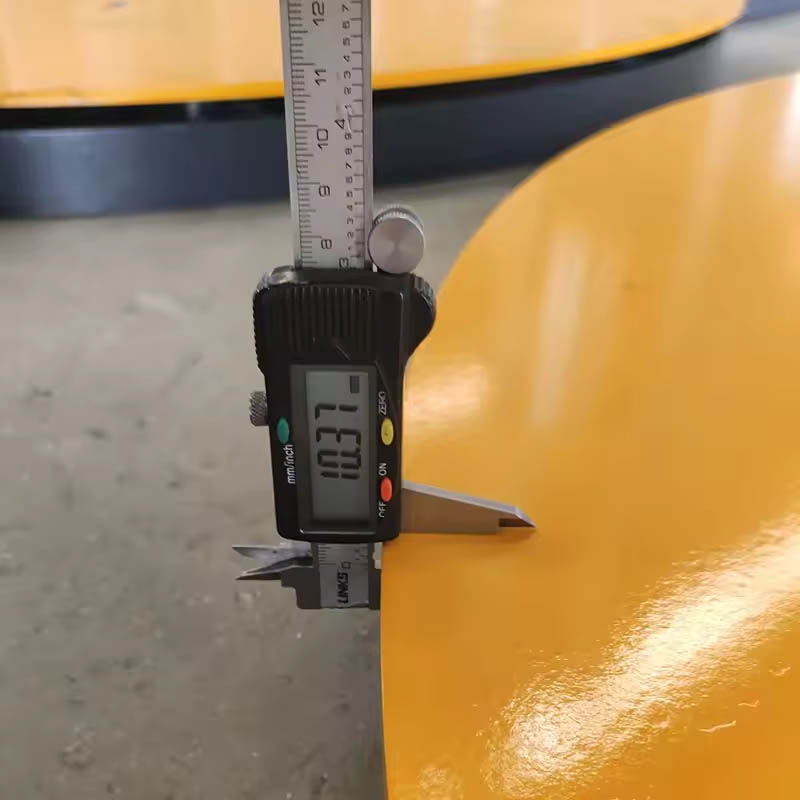

Turntable diameter	Diameter:1650mm height:85mm
Turntable loading(max)	2000kg
Voltage	Single-phase 220V/50Hz
Power	Turntable:0.75kw, Film carriage:0.3kw,up-down:0.4kw
Up-down frame	Double-chain,Up-down speed adjustable
Film carriage	Pre-stretch
Control system	PLC
Machine weight(max)	700kg
Machine size	2650mm1650mm2400mm

Luggage/Pallet Wrapper

TP1650F-L Pallet Wrapping Machine Description

TP1650F-L Automatic Pallet Wrapping Machine Features

Specifications:

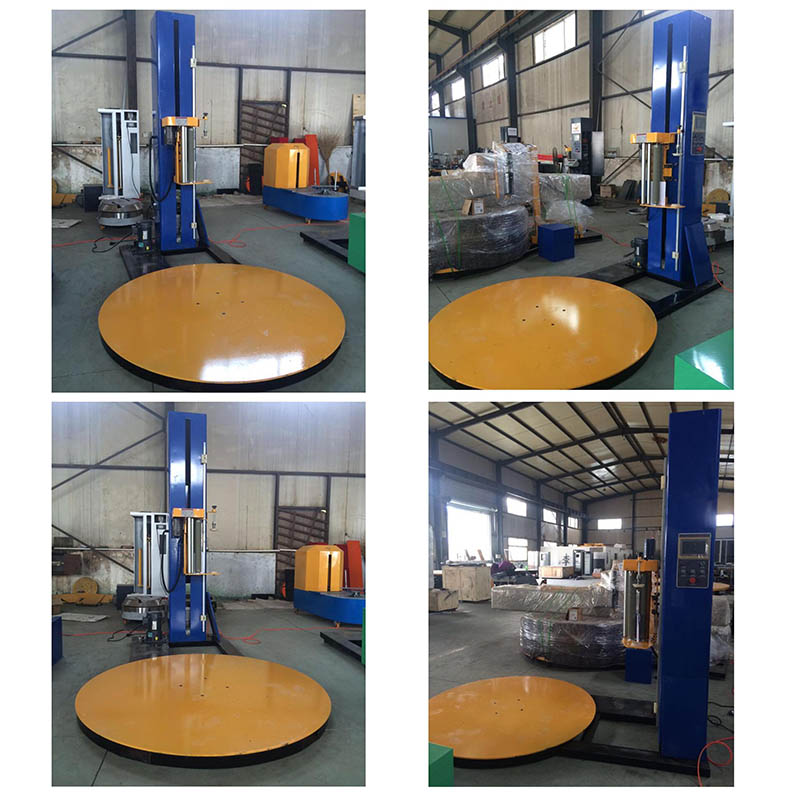

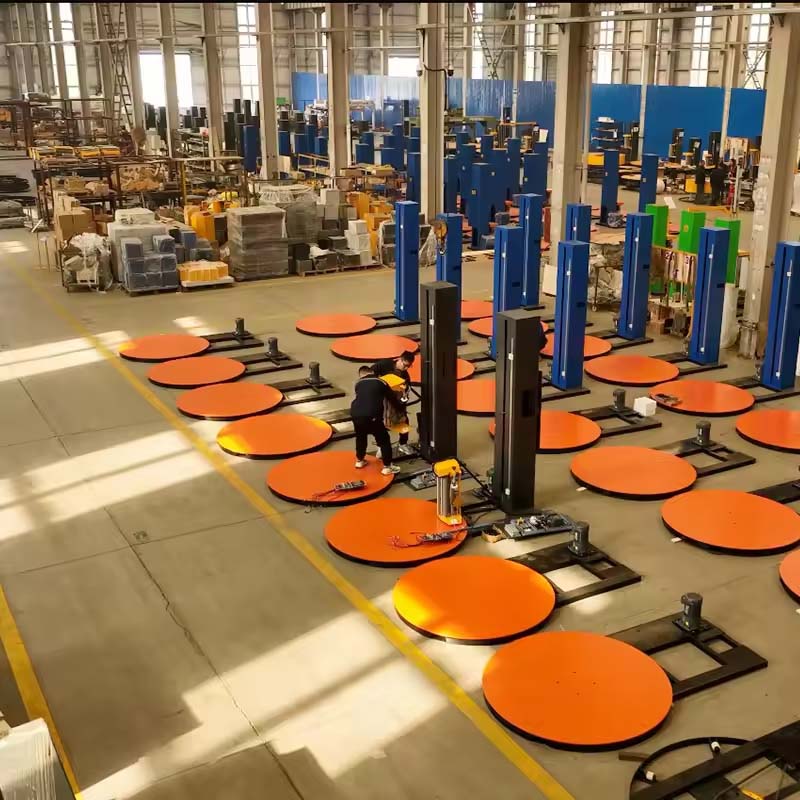

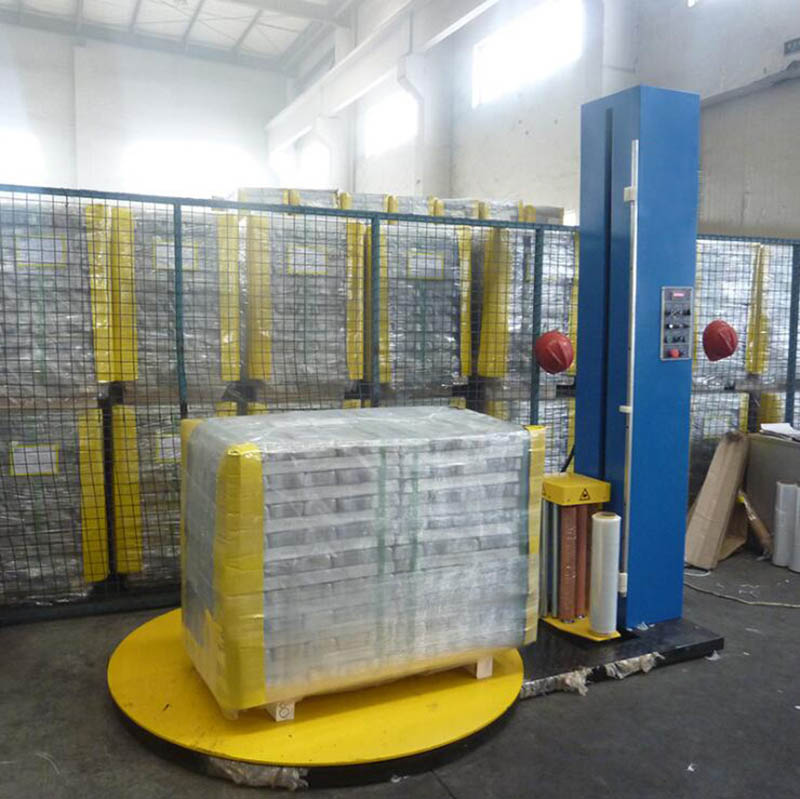

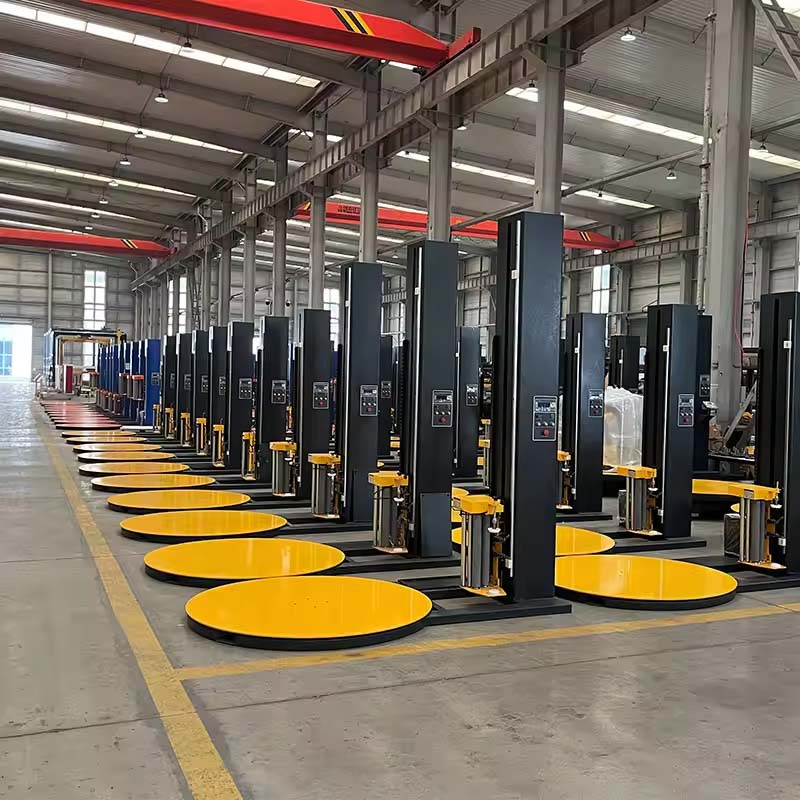

TP1650F-L Pallet Wrapping Machine Images
