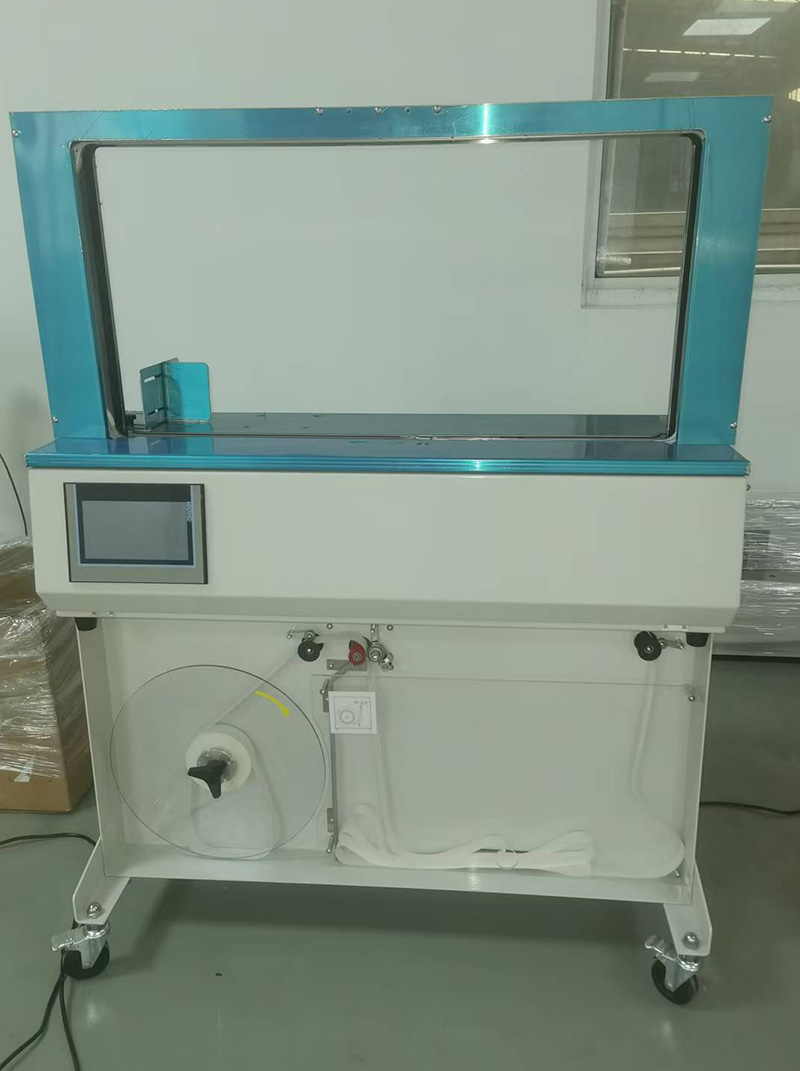

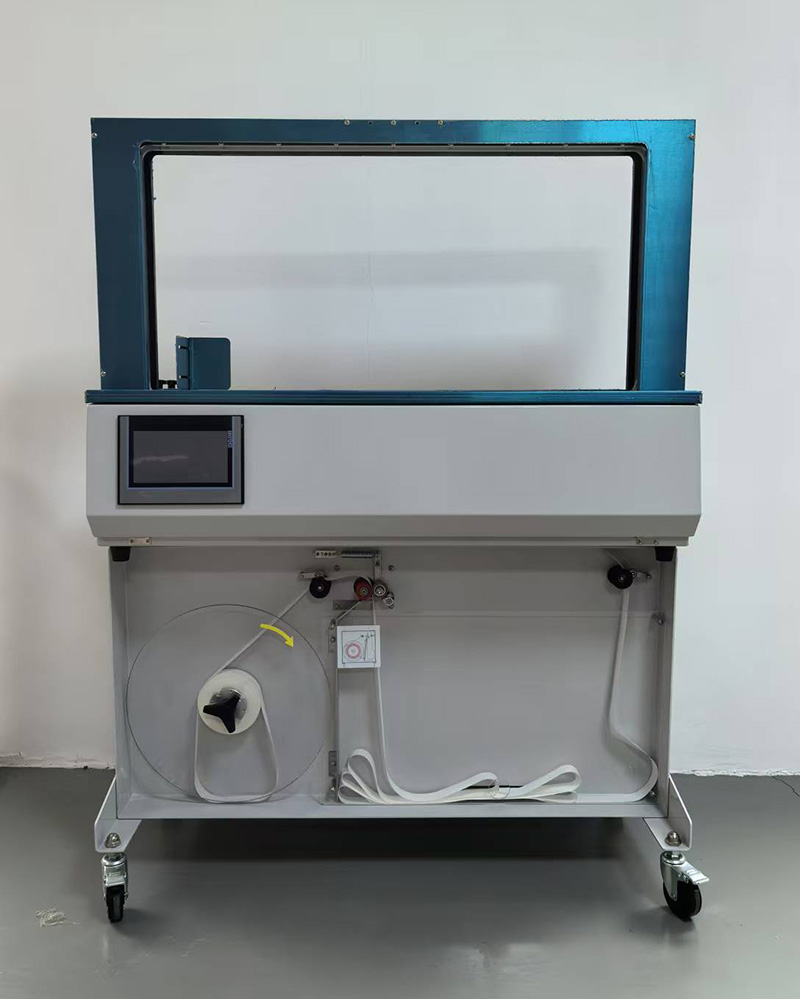

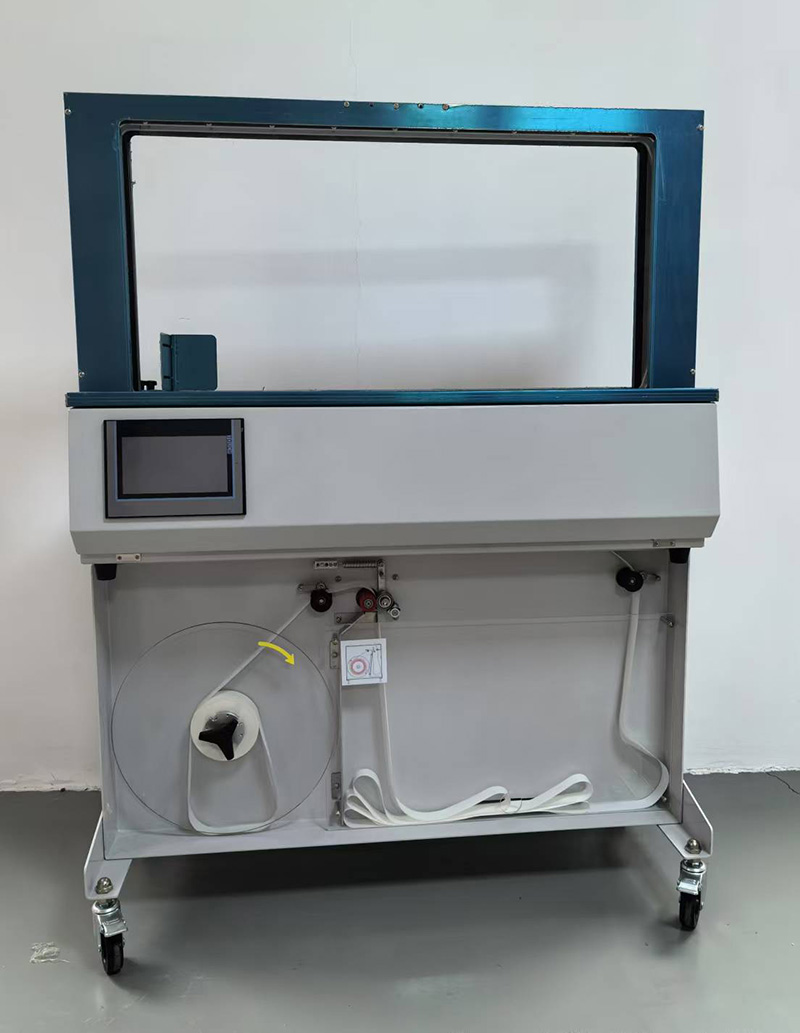

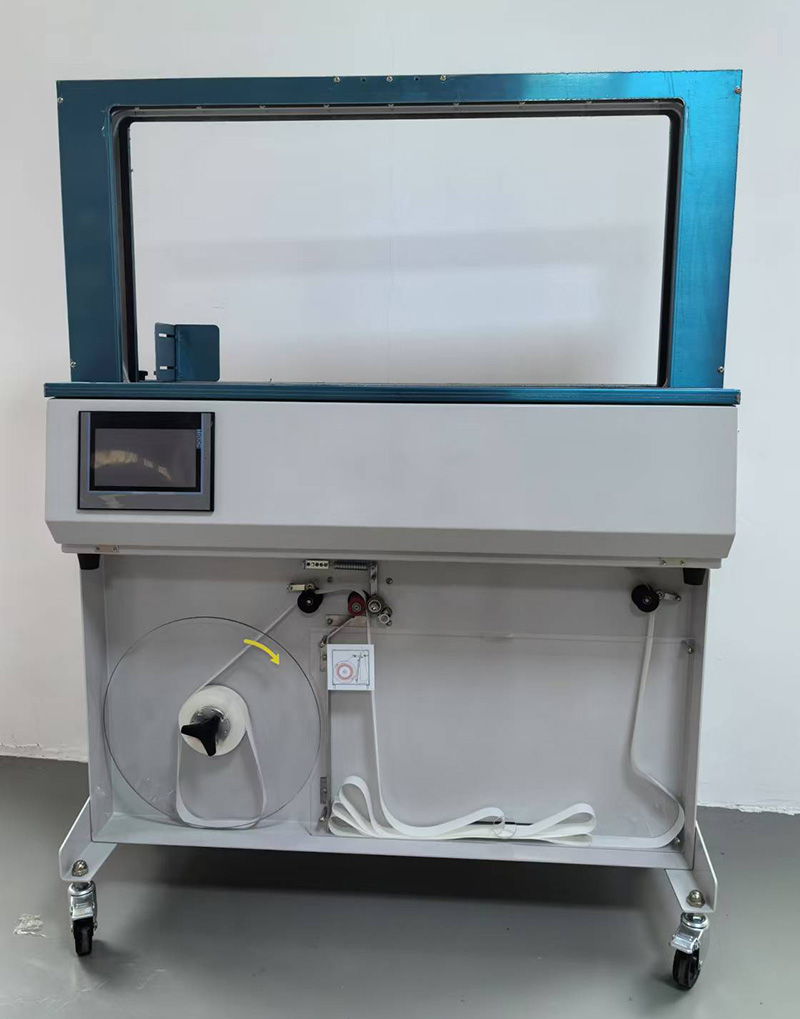

TP-SM8540 Automatic OPP Tape Strapping Machine Paper Tape Banding Machine Description
TP-SM8540 Automatic OPP Tape Strapping Machine Paper Tape Banding Machine Features
1. Hot-melt paper tape bundled, can be used for bundling notes.
2. Microelectronic line control, reliable performance.
3. Photoelectric switch control operation, the use of simple and convenient.
4. With manual, fully automatic work, easy operation.
5. Tightening force adjustable to meet the different needs.

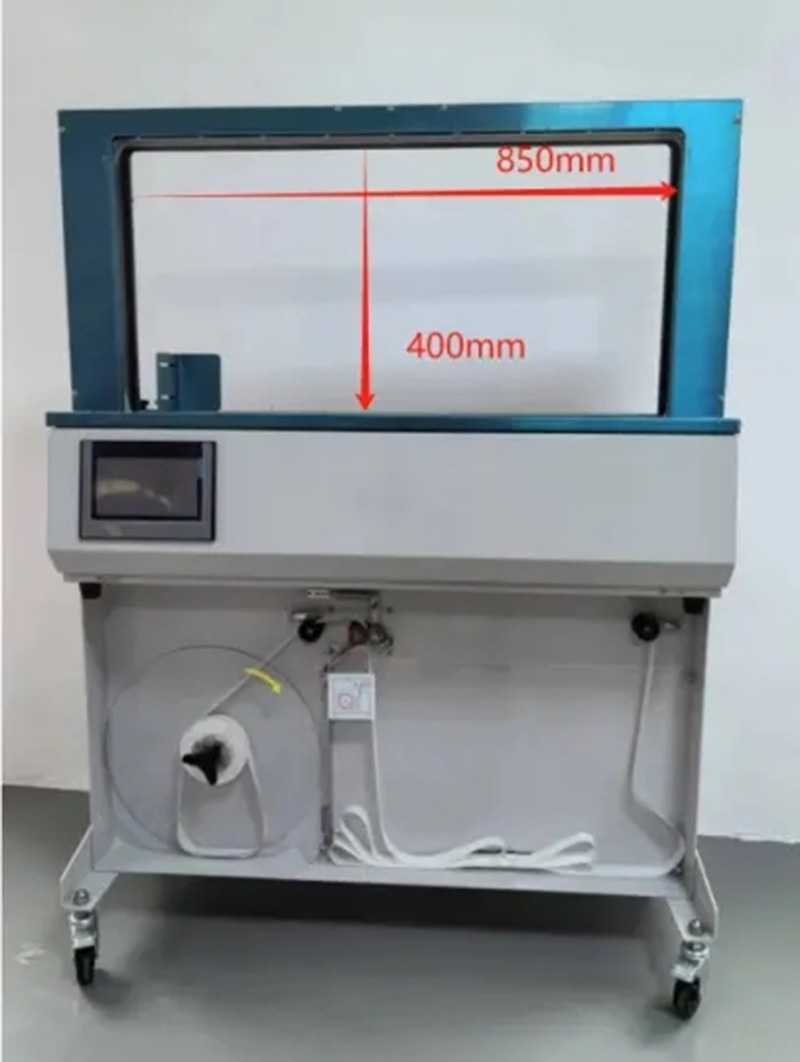

6. Large frame size W850xH400mm can fit for bigger size packaging.
7. A variety of bundled forms: single, double, cross, easy to operate.
Specifications:
Model | TP-SM8540 banding machine |
Width of tape | 20/30mm |
Length of tape roll | 500m paper roll/1000m OPP roll |
Tape material | OPP film band, paper band, kraft paper band |
Frame size | 850 X 400mm |
Max banding size | W850xH400mm |
Min banding size | W30*H10mm |
Roll core diameter | 40mm |
Single banding time | Less than 2.5 second |
Banding tension | 5-50N(adjustable) |
Banding sealing type | Heat sealing |
Power supply | AC 110/220V/50Hz |
Dimension | L1000xW400xH1300mm |
Weight | 135kg |
