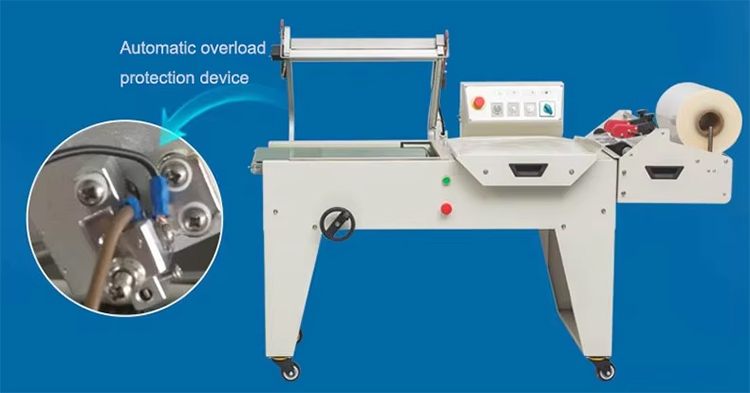

DFQC450 Pneumatic Semi Automatic Sealer Cutter & DSA4525 Heat Shrink Tunnel Wrapper Description
DFQC450 Pneumatic Semi Automatic Sealer Cutter & DSA4525 Heat Shrink Tunnel Wrapper Features
1. Adopt high quality transducer to control the conveying speed.
2. The stainless steel heater ensure the efficient and long service time.
3. Adopt planetary reduction gear and high power motor to ensure stable conveying without shaking.
4. Adopt large cooling fan to cool and shape products quickly after shrinking.
5. Cutting, sealing, shrinking in one time.
Specifications:

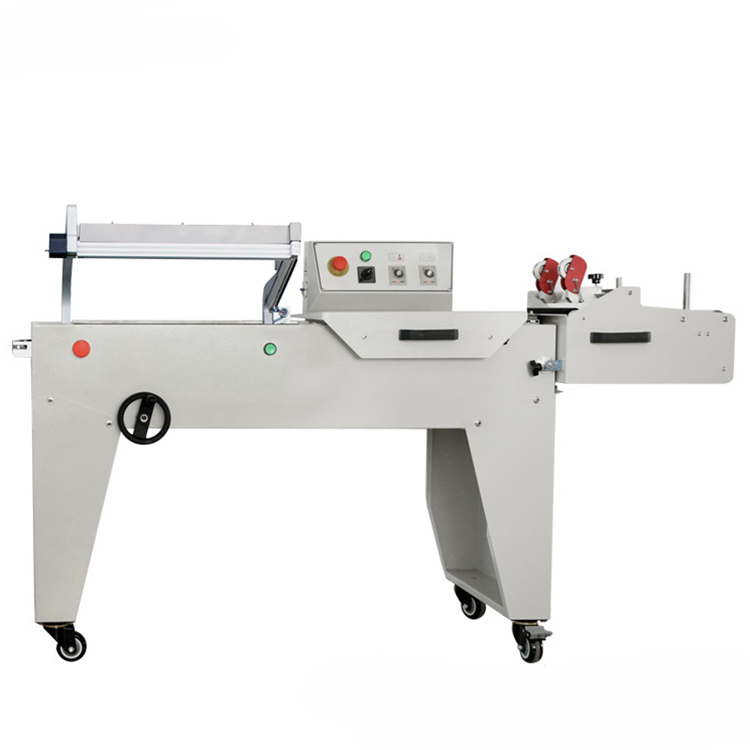

Model | DFQC450 |
Voltage | AC220V 50-60HZ |
Power | 1KW |
Production capacity | 400-600packs/hour |
Max. sealing size(L*W) | 550*450mm |
Machine size(L*W*H) | 1720*730*1050mm |
Machine weight | 128kg |
Cutting film | POF,PVC |

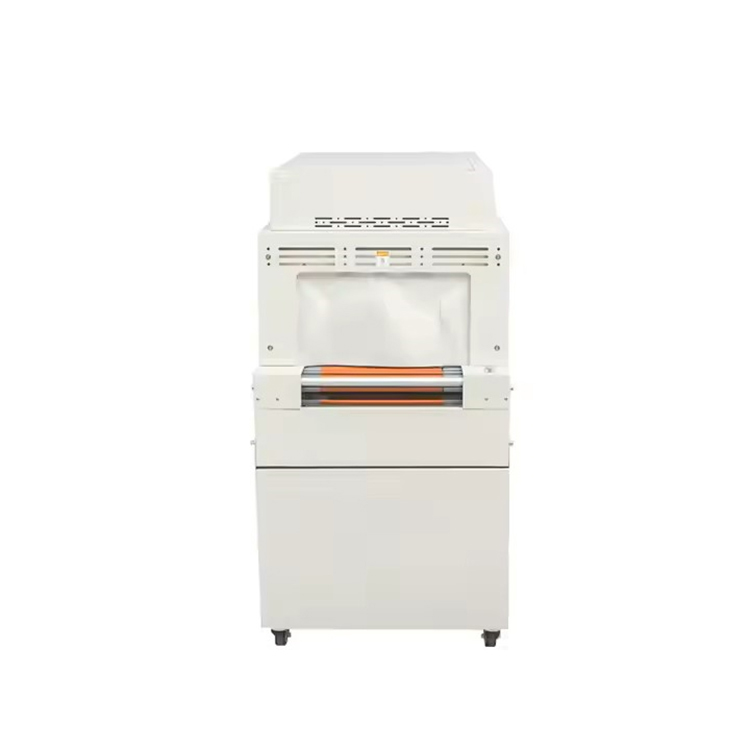

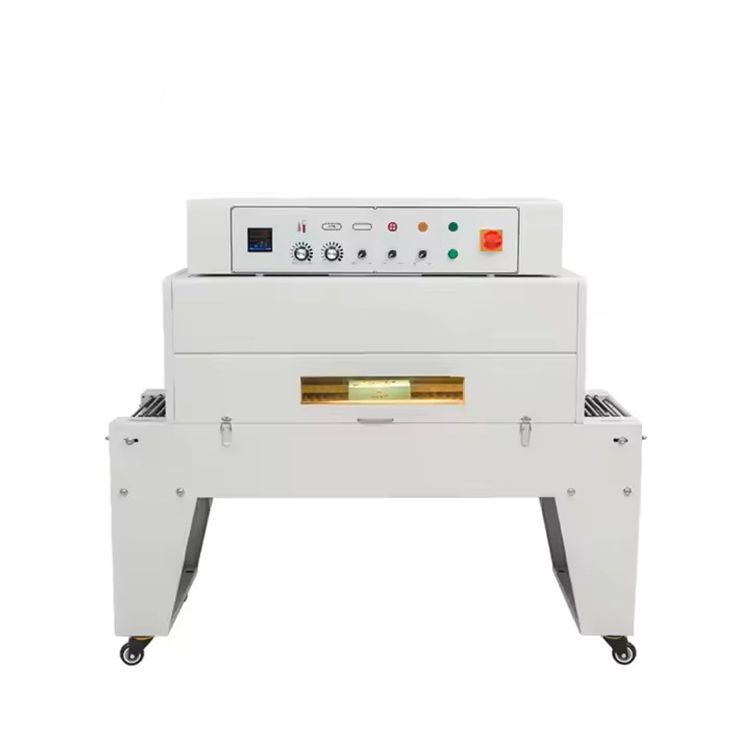

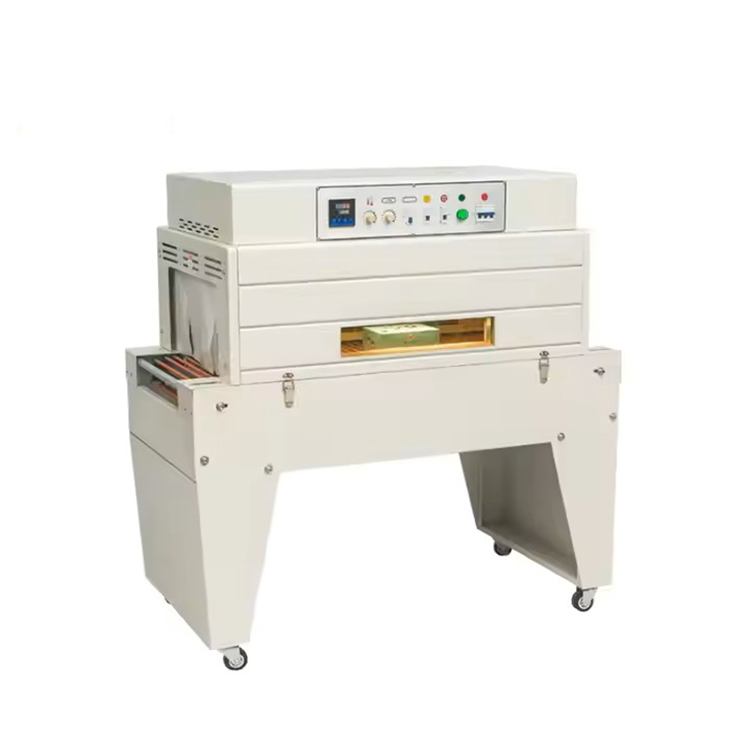

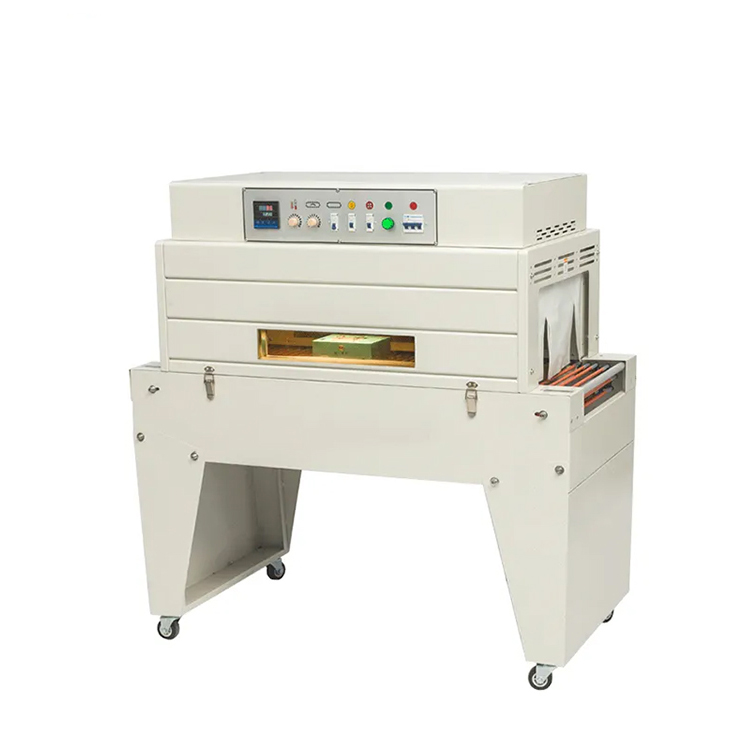

Model | DSA4525 |
Voltage | 380V 50Hz |
Power | 8.65KW |
Conveyor speed | 0-10m/min |
Tunnel size(L*W*H) | 1000*450*250mm |
Conveyor load capacity | 5kg |
Machine size (L*W*H) | 1260*670*1290mm |
Applicable film | POF PVC |
