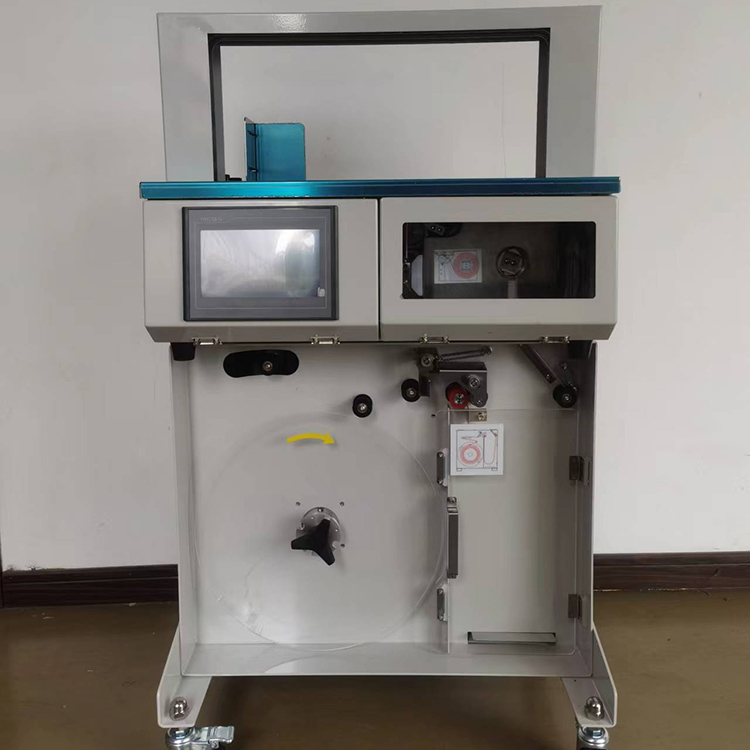

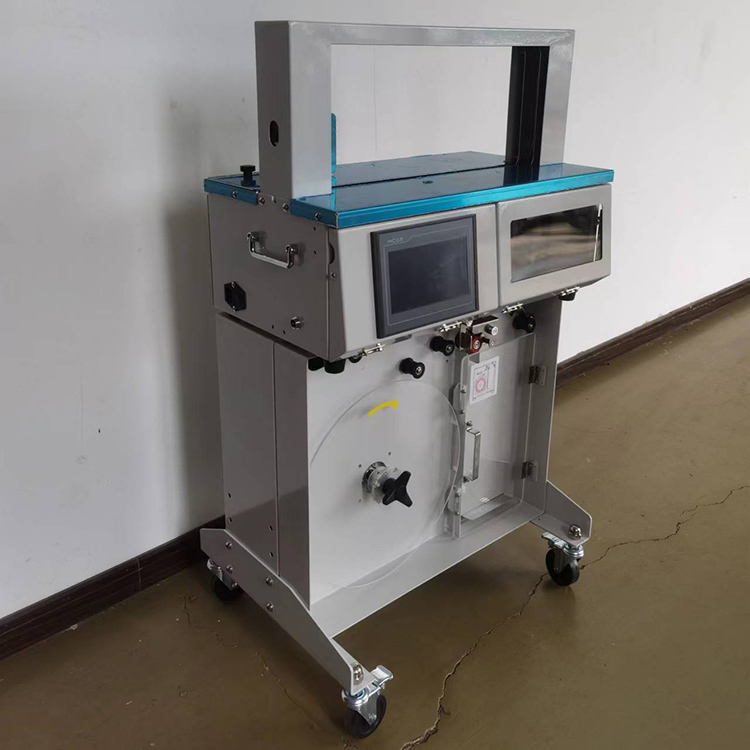

Automatic Paper Tape Feeder OPP Band Dispenser For Banding Machine Description
Automatic Paper Tape Feeder OPP Band Dispenser For Banding Machine Features
1. Hot-melt paper tape bundled, can be used for bundling notes.
2. Microelectronic line control, reliable performance.
3. Photoelectric switch control operation, the use of simple and convenient.
4. With manual, fully automatic work, easy operation.
5. Tightening force and belt size adjustable to meet the different needs.
6. The whole machine is small and beautiful.
7. A variety of bundled forms: single, double, cross, easy to operate.
Specifications:
WIDTH OF BAND | 20/30mm |
LENGTH OF BAND ROLL | 500m/1000m |
BIGGEST BANDING SIZE OF OBJECT | 470×200mm(W×H) |
SMALLEST BANDING SIZE OF OBJECT | 30×10mm(W×H) |
ROLL CORE DIAMETER | 40mm |
OUTER DIAMETER OF BAND ROLL | 350mm |
INTERNAL DIAMETER OF BAND ROLL | 40mm |
SINGLE BANDING TIME | LESS THAN 2.5 SECOND |
BANDING TENSION | 5-50N(ADJUSTABLE) |
BANDING SEALING WAY | HEAT SEALING |
POWER SUPPLY | 60w |
MEASUREMENT(L×W×H) | 620×460×770mm |
NET WEIGHT | 37KGS |
